SS 304 CG Spiral Wound Gasket
Over 6000+ pieces SS 304 CG Spiral Wound Gasket we can produce each day in factory low price
Content

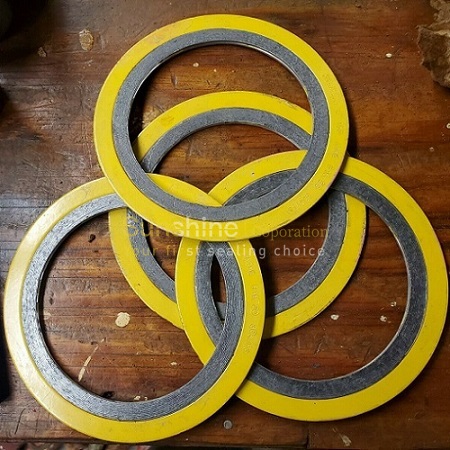

Quick Overview of SS 304 CG Spiral Wound Gasket
SS 304 CG spiral wound gasket has very good corrosion resistance, heat resistance and treatment. Very suitable for using in flat bottom groove flanges, natural gas and power generation, hydrocarbon processing and refining, petrochemical processing, chemical processing, oil and gas industries.SS 304 stainless steel is the most common form of stainless steel used around the world due to excellent corrosion resistance and value. 304 can withstand corrosion from most oxidizing acids. That durability makes 304 easy to sanitize, and therefore ideal for kitchen and food applications. SS304 is the basic steel alloy, comprised of 18% chromium and 8% nickel. The remainder of its structure is made up of carbon dioxide, manganese, silicon and also small quantities of phosphorous and sulfur. This make-up makes certain that SS 304 includes a well-well balanced amount of performance in terms of weldability, deterioration opposition and anti-oxidation qualities.
What is CG Type of Spiral Wound Gasket?
CG spiral wound gasket consists of a winding ring and an outer ring. By means of suitable dimension of the centering ring, the sealing element is accurately centered on the flange face by the bolts. The outer ring of spiral wound gasket can Protect the spiral wound sealing element. It is suitable for male and female pipe flanges.Which is Cheaper SS304 or SS 316?
The 304 stainless steel also known as SS304 is usually cheaper than 316 stainless steel. This metal contains up to 18% chromium and up to 8% nickel. It's a strong metal with high resistance against corrosion and it can be easily fabricated.
Chemical Analysis of SS 304 (%)
| UNS |
P ≤ |
Ni ≥ |
C ≤ |
Mn ≤ |
Si ≤ |
S ≤ |
Cr |
| S30400 | 0.045 | 8 - 10.5 |
0.08 |
2 | 0.75 | 0.03 | 18 - 20 |
Mechanical Properties of SS 304
|
Ultimate Tensile Strength (Mpa) |
Elongation % |
Yield Strength MPa |
Density g/cm3 |
Hardness (HRB) |
|
550 |
51 |
230 |
7.93 |
85 |
