Inconel 600 Spiral Wound Gasket
Inconel 600 is a nickel-chromium alloy with good oxidation resistance at higher temperatures, with good resistance in carburizing and chloride containing environments.
Content

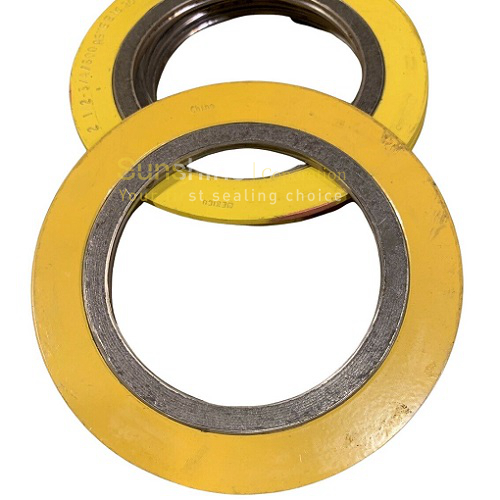

What is Inconel 600 Spiral Wound Gasket?
Inconel 600 spiral wound gasket consists of a winding ring made of V-shape Inconel 600 strip tape and PTFE or graphite filler, then combined with an inner ring or outer centering guide ring. Inconel 600 spiral wound gasket has great resistance to heat and corrosion and features superior strength.Inconel 600 is a nickel base alloy with resistance to a variety of corrosive conditions. The Alloy 600 is used in a variety of corrosion resisting applications. The high nickel content of Alloy 600 provides a level of resistance to reducing environments, while the chromium content of the material provides resistance to weaker oxidizing environments. The high nickel content of the material provides exceptional resistance to chloride stress corrosion cracking.
Applications of Inconel 600 Spiral Wound Gaskets
Inconel 600 spiral wound gasket can be used in food processing, nuclear engineering, aerospace, heat treatment, Gas Turbine components and Paper industry.Corrosion Resistance of Alloy Inconel 600
The high chromium content of alloy Inconel 600 raises its oxidation resistance considerably above that of pure nickel, while its high nickel content provides good corrosion resistance under reducing conditions. This alloy exhibits high levels of resistance to stress and salt water, exhaust gases, and most organic acids and compounds.
Chemical Analysis of Inconel 600 (%)
| Cr | Fe | Ni ≥ | C ≤ | Mn ≤ | Si ≤ | S ≤ | Cu ≤ |
| 14 to 17 | 6 - 10 | 72 | 0.15 | 1 | 0.5 | 0.01 | 0.5 |
Mechanical Properties of Inconel 600
| Ultimate Tensile Strength (Mpa) | Elongation % | Yield Strength MPa | Density g/cm3 |
|
680 |
28 |
600 |
7.9 |
