SS 316Ti Spiral Wound Gasket
Buy SS 316Ti Spiral Wound Gasket in factory price and good quality. Free sample
Content
What is SS 316Ti Spiral Wound Gasket?

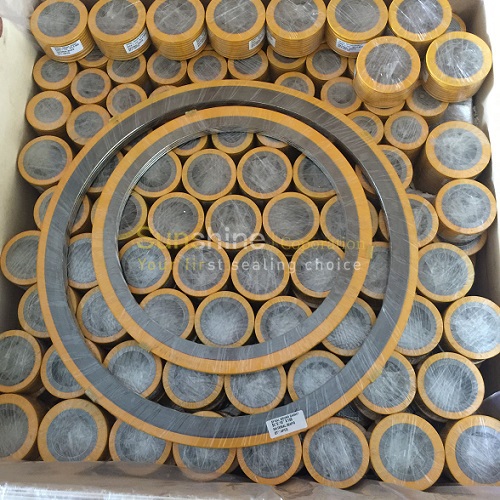

SS 316Ti spiral wound gasket consists of a winding ring made of V-shape SS 316Ti strip and PTFE or graphite filler, then combined with an inner ring or outer centering guide ring. SS 316Ti spiral wound gasket has excellent resistance to general corrosion and pitting corrosion, which is better than the conventional chromium-nickel austenitic stainless steel spiral wound gasket such as Type 304. SS 316Ti spiral wound gasket also offer higher creep, stress-rupture and tensile strength at elevated temperatureWhat is SS 316Ti?
Grade SS 316Ti is similar to Grade 316L except that 316Ti has better high temperature strength, and mechanical strength. It is used for equipment exposed to aggressive corrosive conditions and high temperature applications including automotive flexible connectors, welded bellows, chimney liners, and flexible ducting.Applications of SS 316Ti Spiral Wound Gasket
SS 316Ti spiral wound gasket is used in marine environment, Pulp and Paper Equipment, Heat exchangers, Propeller shafts, Fittings, Exterior Architectural components in Marine Coastal Areas.
Chemical Analysis of SS 316Ti (%)
| Ni | P ≤ | Ni | C ≤ | Ti ≤ | Cr ≤ | Mn ≤ | Si ≤ |
| Balance | 0.45 | 10 - 14 | 0.08 | 0.7 | 16 - 18 | 2 | 0.75 |
Mechanical Properties of SS 316Ti
| Ultimate Tensile Strength (Mpa) | Elongation % | Yield Strength MPa | Density g/cm3 |
|
550 |
43 |
240 |
9.2 |
