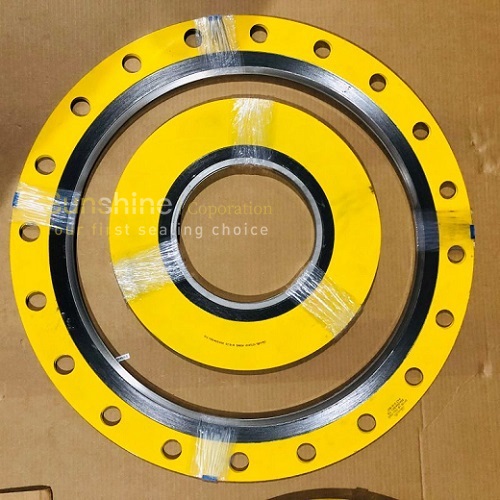

Spiral Wound Gasket with Bolt Holes
Buy high quality spiral wound gasket with bolt holes from us in factory price
Content
Description
Spiral wound gasket with bolt holes is very easy to install, it is made of stainless steel with soft filler and then combined with an inner ring or outer ring. The inner ring can be 304 SS, 316L SS, 321 SS, 347 SS, Titanium, Inconel 600, Incoloy 800/825, Inconel X-750, Monel 400, the outer ring is usually carbon steel when other steel materials are also often used.Specifications
Spiral wound gasket with bolt holes are manufactured in accordance with all relevant gasket standards to suit flange designations: ASME B 16.20, ASME B 16.5, BS1560, ASME B 16.47 A (B), BS EN 1092, DIN, JIS, and NF, etc.Typical Applications
Spiral wound gasket with bolt holes are used for pipe, valve, pump, thermal exchange, condensing tower, plain hole and man hole of flange, chemical, mechanical manufacturer, power station, metallurgy, shipbuilding, medical and pharmaceutical.
