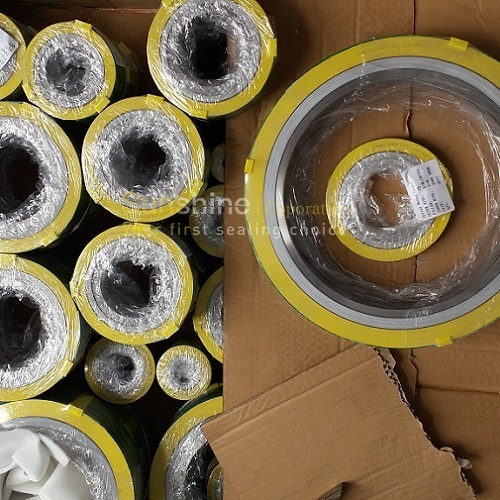

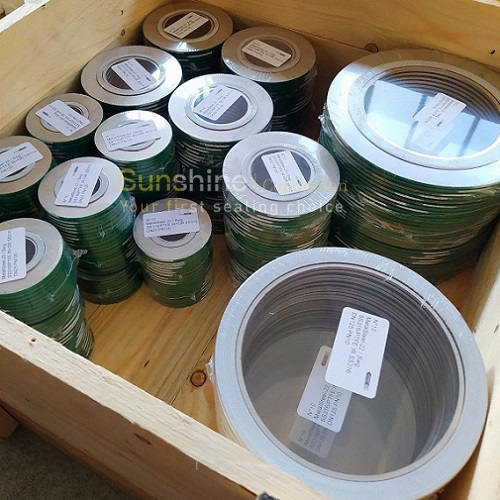

INCOLOY 800 Spiral Wound Gasket
8800+ pieces quality INCOLOY 800 Spiral Wound Gasket in stocks at us waiting to World Market. Free Sample offered.
Content
What is INCOLOY 800 Spiral Wound Gasket?
Incoloy 800 spiral wound gasket is made of Incoloy 800 V-shape tape and soft PTFE filler or graphite filler, can be with inner and outer ring. This gasket has good strength and high resistance to oxidizing, reducing and aqueous environments. Incoloy 800 spiral wound gasket is with moderate strength and good resistance to oxidation and carburization at elevated temperatures, It is particularly useful for high-temperature equipment in the petrochemical industry because the alloy doesn't form the embrittling sigma phase after long time exposure at 1200°F (649°C).INCOLOY alloy 800 belongs to the category of super austenitic stainless steels. These alloys have nickel-chromium-iron as the base metals, with additives such as molybdenum, copper, nitrogen and silicon.
Application of INCOLOY 800 Spiral Wound Gasket
Incoloy 800 spiral wound gasket is good at using in all kinds of flanges, heat exchangers and process piping, carburizing fixtures and retorts, furnace components, electric range heating-element sheathing, extruded tubing for ethylene and steam methane reforming furnaces, ammonia effluent coolers.Advantages of Alloy Incoloy 800
Incoloy 800 has high temperature strength, high creep rupture strength, is resistant to oxidation and carburization in high temperature environments. It also has good corrosion resistance in many acidic environments and good resistance to many sulfur-containing atmospheres.Chemical Analysis of INCOLOY 800(%)
| Fe | Cr |
Ni ≥ |
C ≤ |
Al |
Ti ≤ |
| 39.8 | 19 - 23 | 30 - 35 |
0.1 |
0.15 - 0.6 | 0.7 |
Mechanical Properties of INCOLOY 800
|
Ultimate Tensile Strength (Mpa) |
Elongation % |
Yield Strength MPa |
Density g/cm3 |
|
600 |
45 |
275 |
7.94 |
